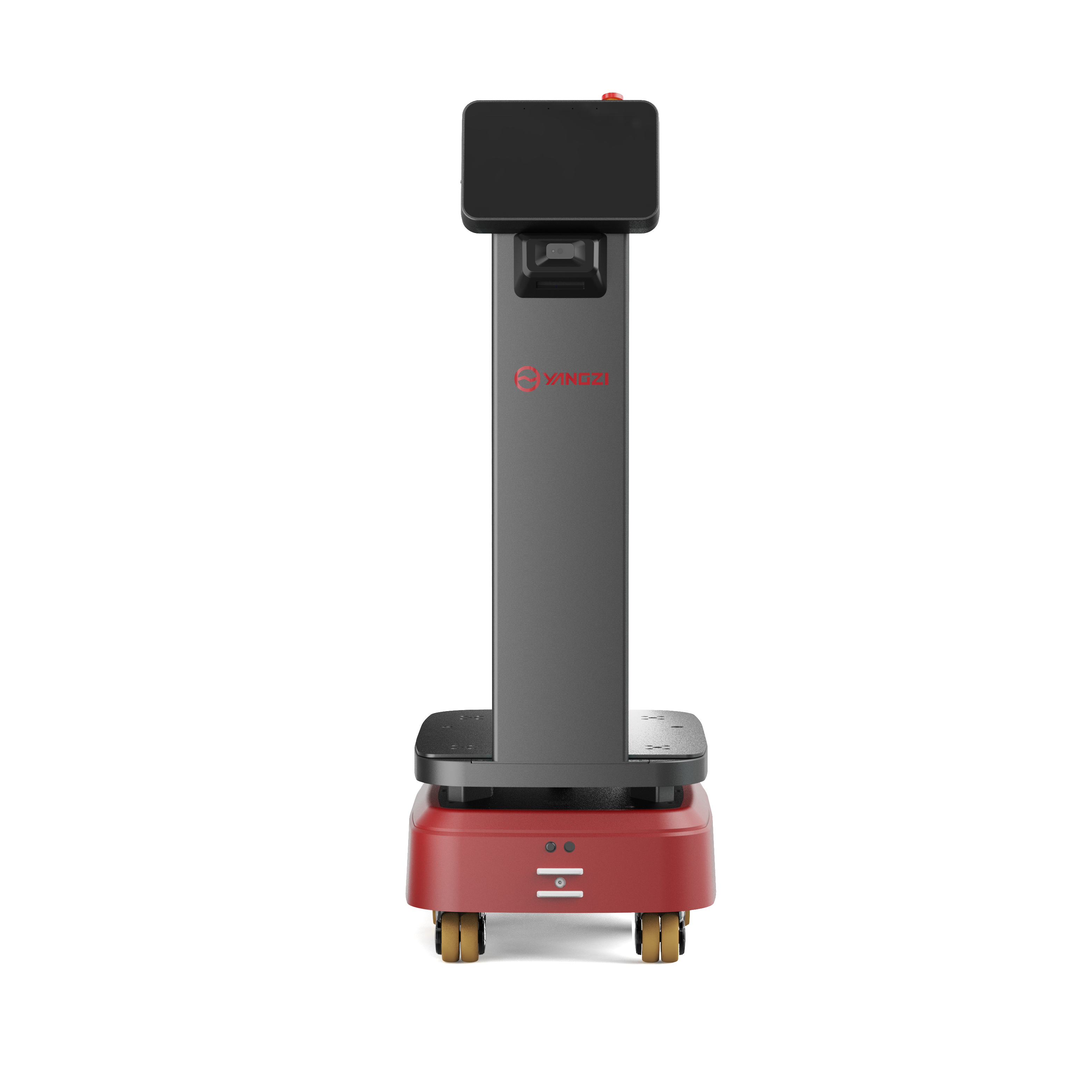

Autonomous Pallet Handling & Transport Solution for Warehouses!

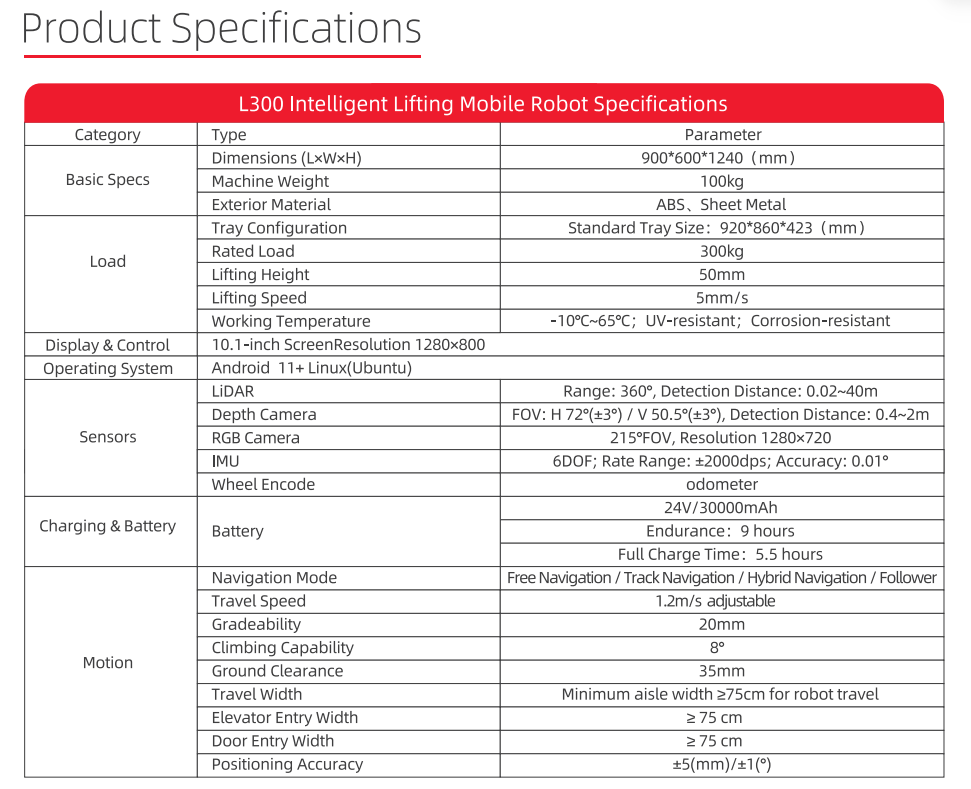

Core Specifications Table for the L300 Robot:
| Category | Specification | Parameter |
|---|---|---|
| Basic Specs | Dimensions (L×W×H) | 900×600×1240 mm |
| Machine Weight | 100 kg | |
| Exterior Material | ABS, Sheet Metal | |
| Load | Tray Configuration | Standard Tray Size: 920×860×423 mm |
| Rated Load | 300 kg | |
| Lifting Height | 50 mm | |
| Lifting Speed | 5 mm/s | |
| Working Temperature | -10°C~65°C; UV-resistant; Corrosion-resistant | |
| Display & Control | 10.1-inch Screen | Resolution: 1280×800 |
| Operating System | Operating System | Android 11 + Linux (Ubuntu) |
| Sensors | LiDAR | Range: 360°, Detection Distance: 0.02~40 m |
| Depth Camera | FOV: H 72°(±3°) / V 50.5°(±3°), Detection Distance: 0.4~2 m | |
| RGB Camera | 215°FOV, Resolution 1280×720 | |
| IMU | 6DOF; Rate Range: ±2000dps; Accuracy: 0.01° | |
| Wheel Encoder | Odometer | |
| Charging & Battery | Battery | 24V/30000mAh |
| Endurance | 9 hours | |
| Full Charge Time | 5.5 hours | |
| Motion | Navigation Mode | Free Navigation / Track Navigation / Hybrid Navigation / Follower |
| Travel Speed | 1.2 m/s adjustable | |
| Gradeability | 20 mm | |
| Climbing Capability | 8° | |
| Ground Clearance | 35 mm | |
| Travel Width | Minimum aisle width ≥75 cm for robot travel | |
| Elevator Entry Width | ≥ 75 cm | |
| Door Entry Width | ≥ 75 cm | |
| Positioning Accuracy | ±5(mm)/±1(°) |
Why Choose Yangzi L300?
01. Autonomous Material Handling
✅Designed to automate repetitive pallet transport tasks and reduce dependence on manual material handling.
02. Intelligent Warehouse Operation
✅Suitable for automated material movement between designated loading, storage and production areas.
03. Reduce Manual Handling
✅Automate repetitive transport operations and help improve warehouse workflow efficiency.
04. Flexible Application
✅Suitable for factories, warehouses, logistics centers and other material handling environments.
05. B2B Customization
✅Configuration and handling solutions can be discussed according to different warehouse layouts and application requirements.

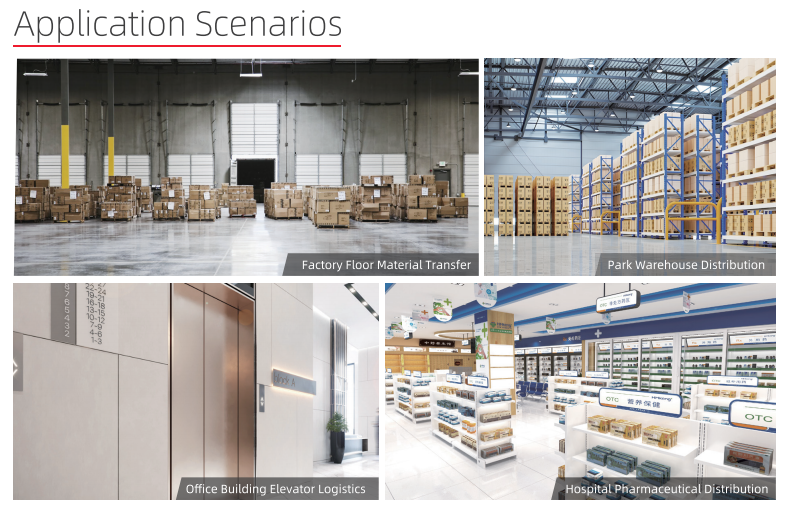

L300 Application Scenarios
Warehouse: Automated pallet transport between storage and handling areas.
Factory: Material movement between production lines and warehouses.
Logistics Center: Improve pallet transportation efficiency in logistics operations.
Distribution Center: Support repetitive material handling tasks in high-frequency environments.
Manufacturing Facility: Reduce manual transportation for repetitive internal logistics operations.

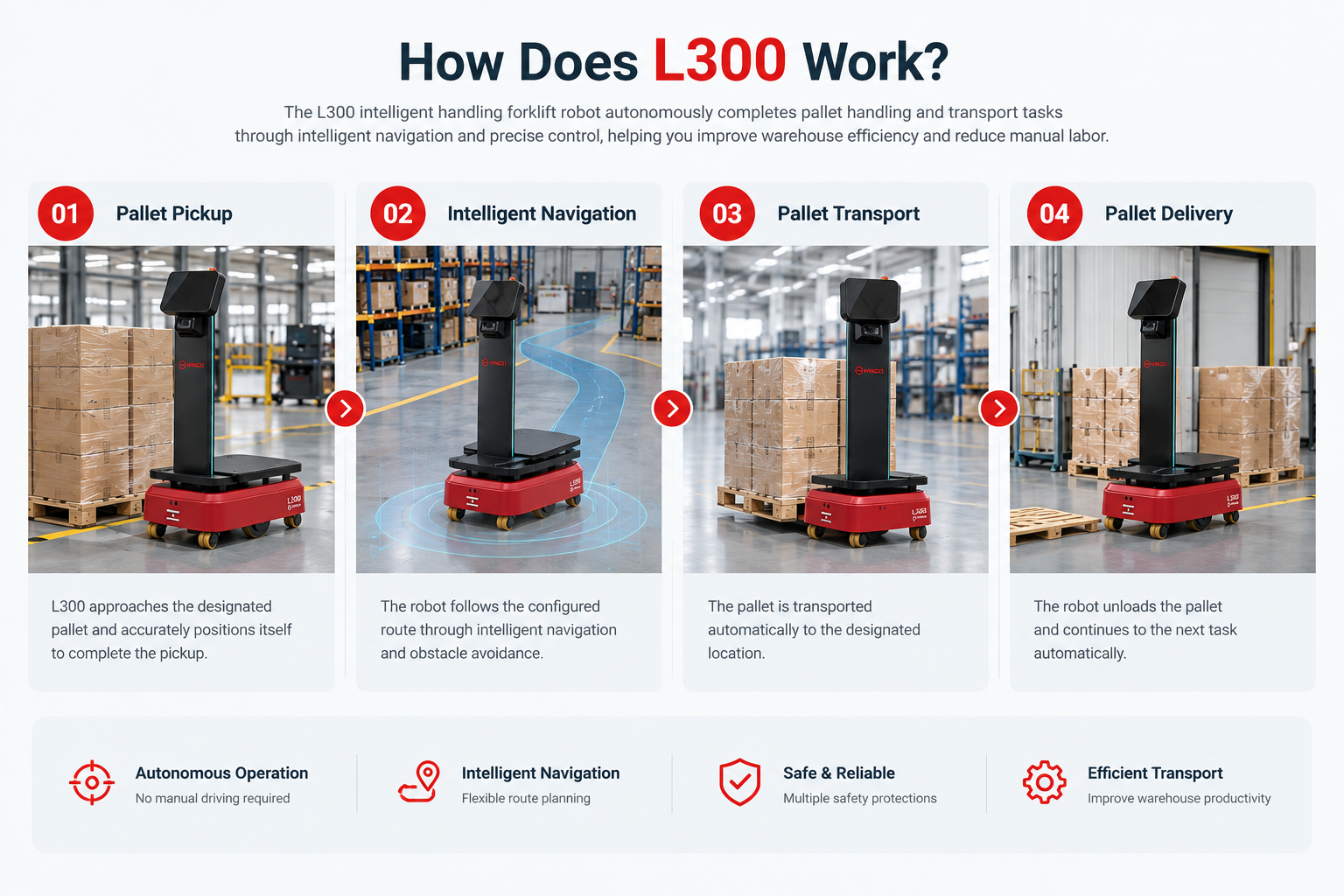

How Does L300 Work?
01 — Pallet Pickup
L300 approaches and picks up the designated pallet.
↓
02 — Intelligent Navigation
The robot follows the configured route to the target location.
↓
03 — Pallet Transport
The pallet is transported automatically to the designated area.
↓
04 — Pallet Delivery
The robot unloads the pallet and continues to the next task.
Traditional Forklift vs. Intelligent Handling Robot
| Traditional Forklift | L300 | |
|---|---|---|
| Manual Driving | Required | Automated operation* |
| Pallet Transport | Manual | Automated* |
| Repetitive Tasks | Operator dependent | Suitable for automation |
| Warehouse Automation | Limited | Designed for intelligent handling |
| Labor Requirement | Operator required | Reduced manual handling* |
| Application | General handling | Automated material transport |

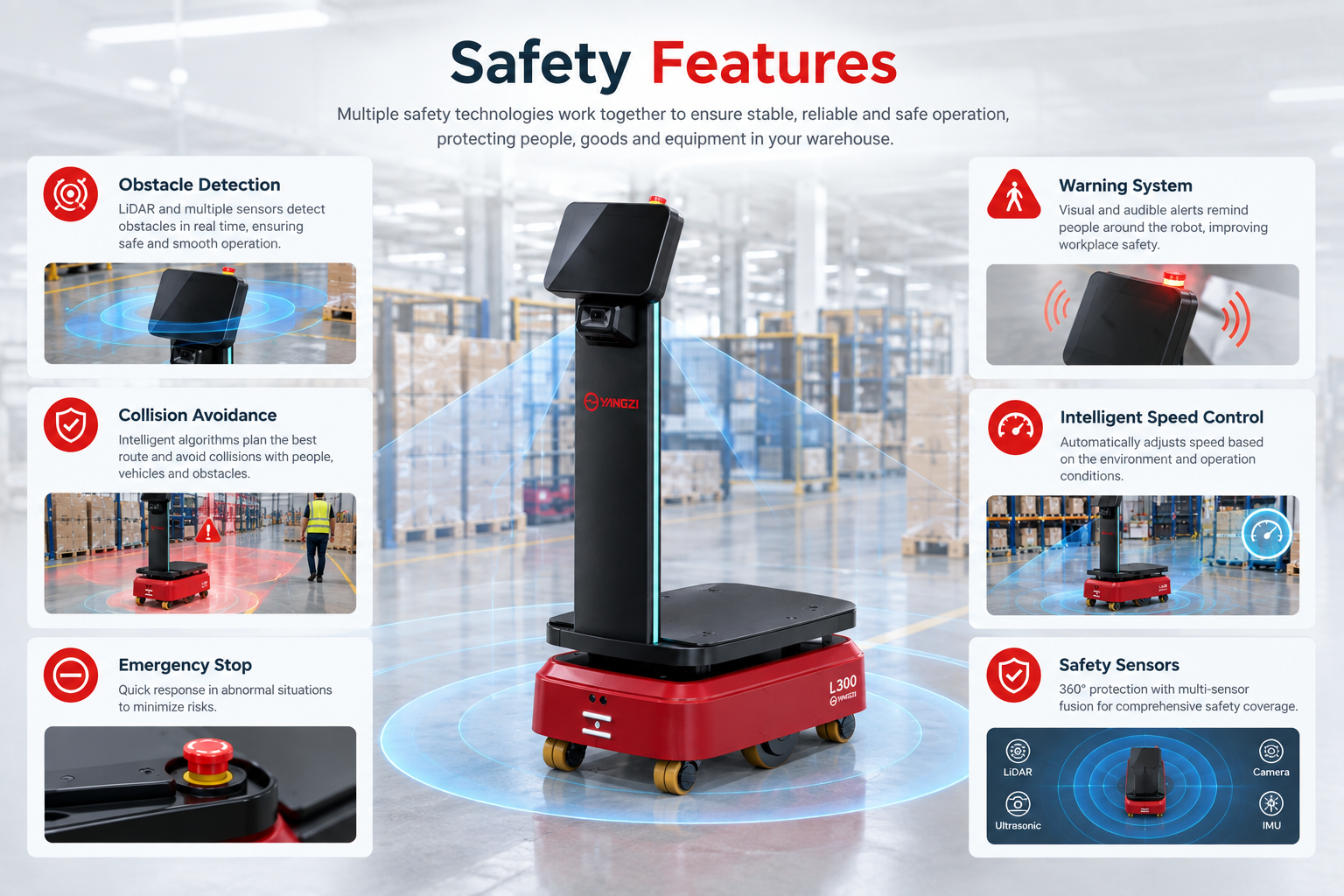

Safety Features
Obstacle Detection
Emergency Stop
Collision Avoidance
Warning System
Intelligent Speed Control
Safety Sensors
