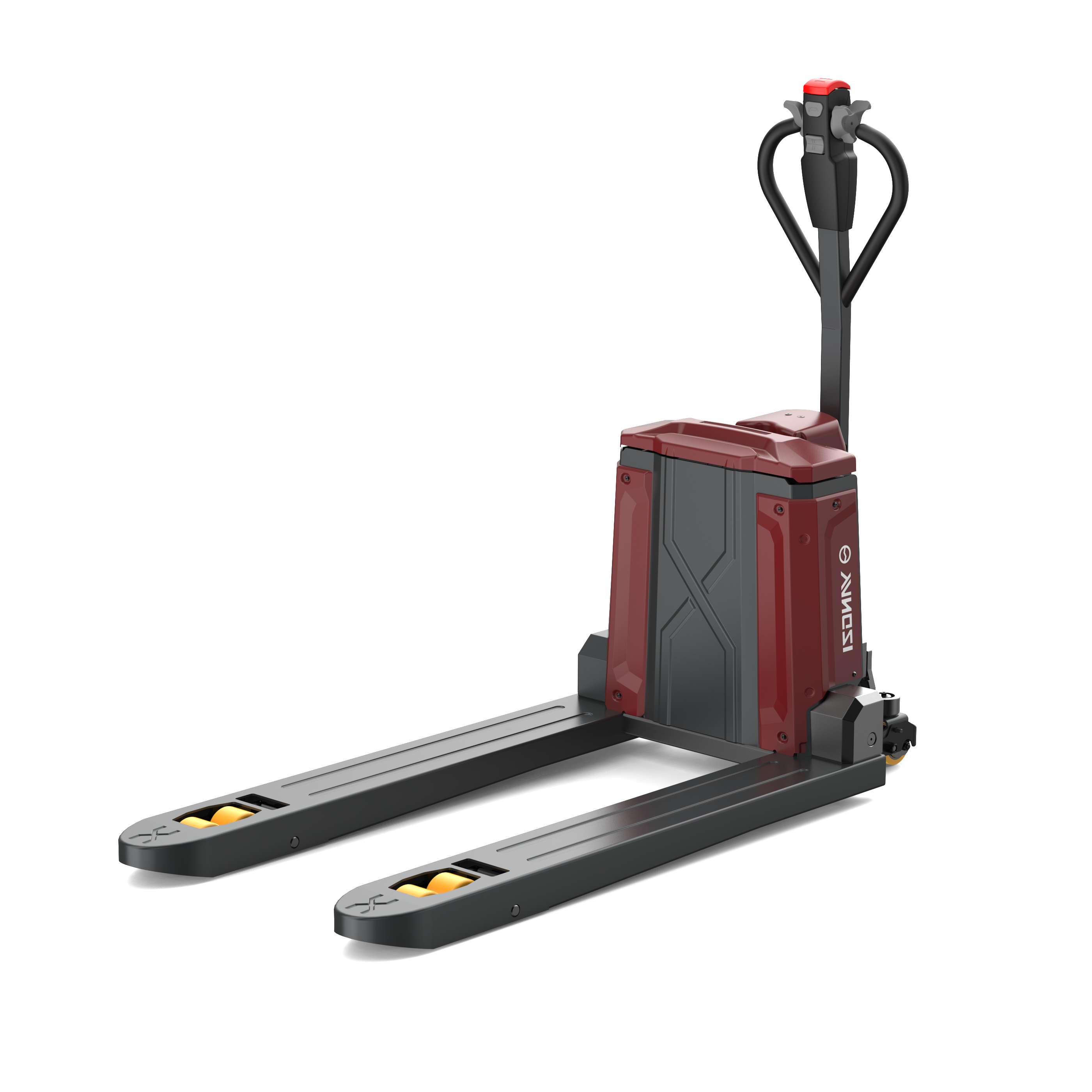

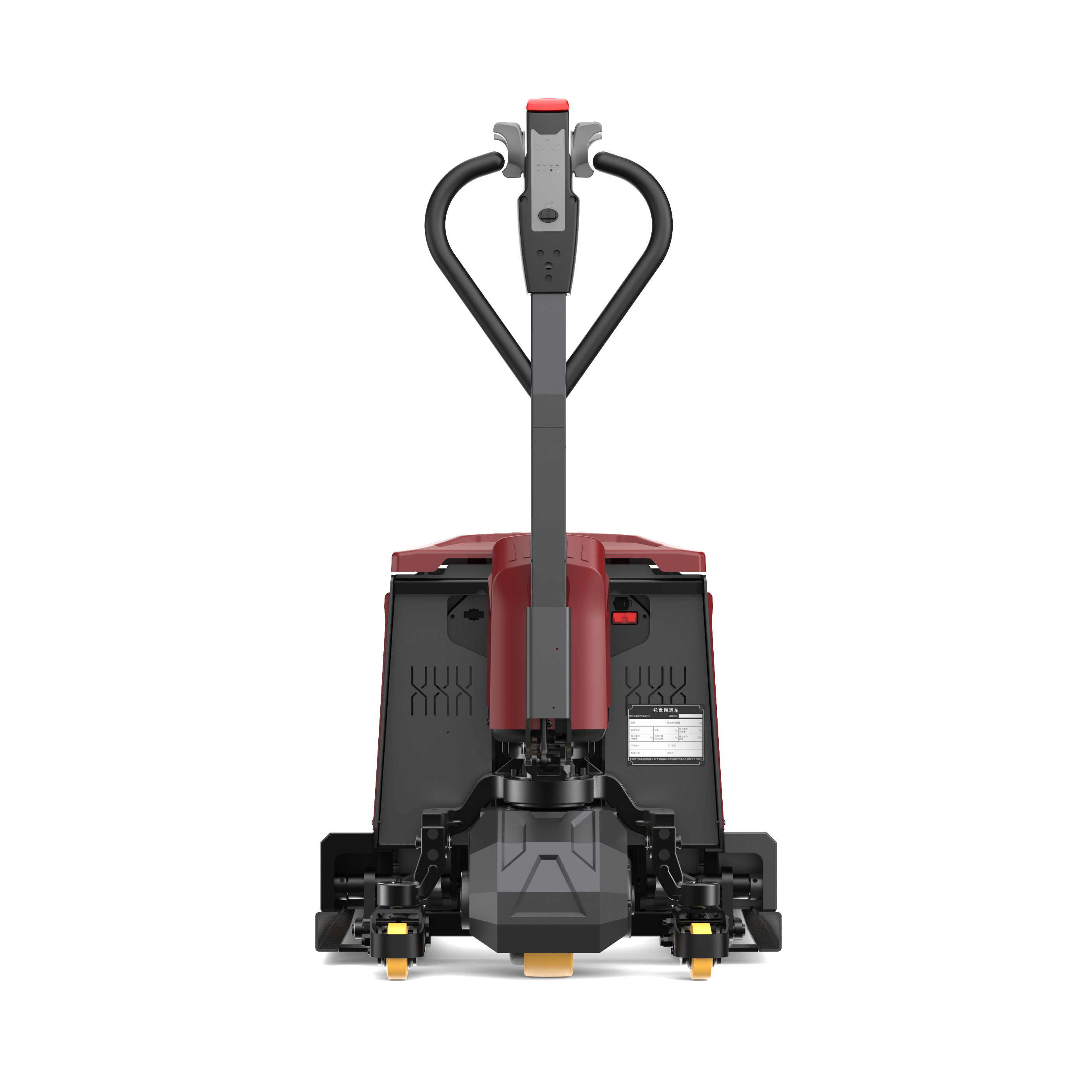

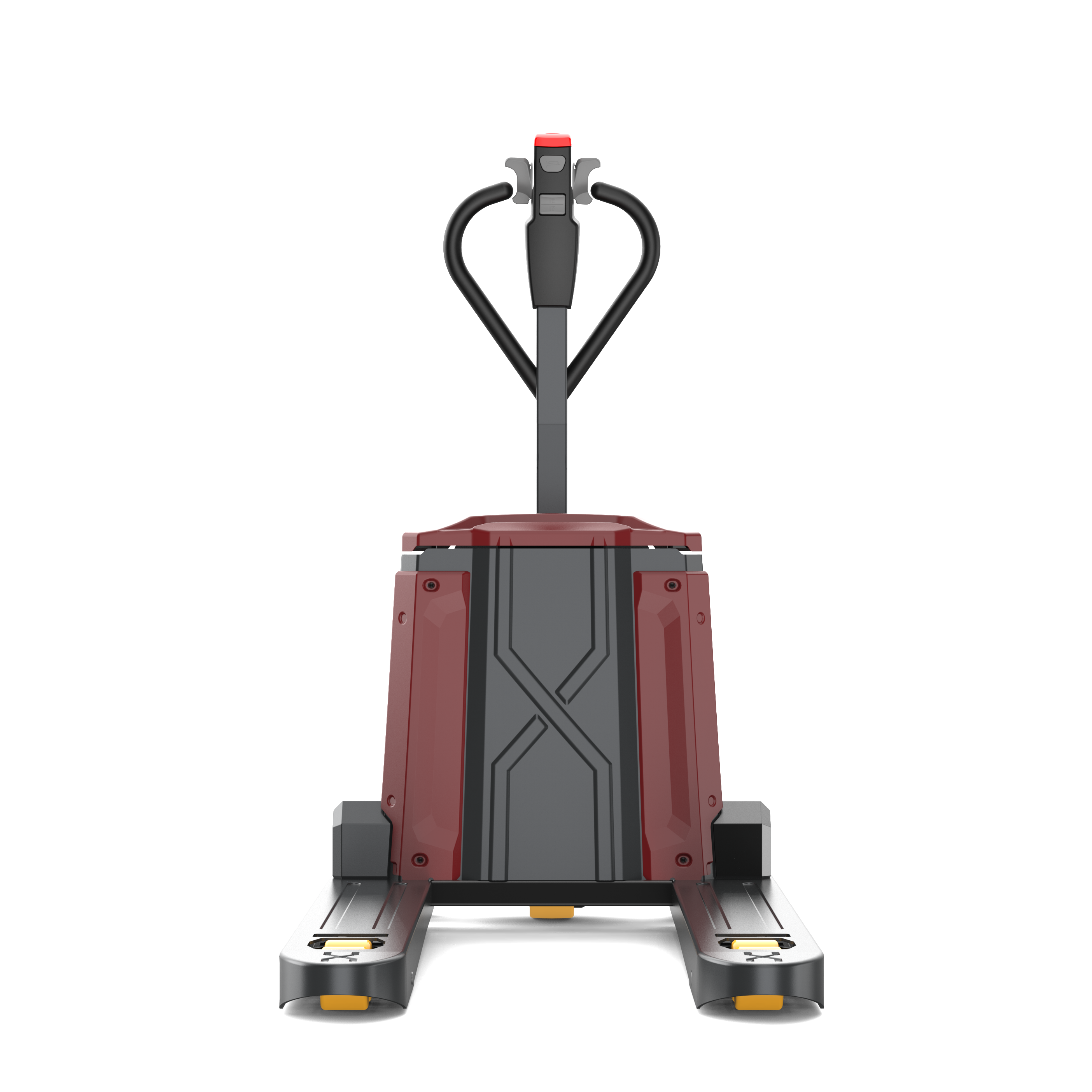

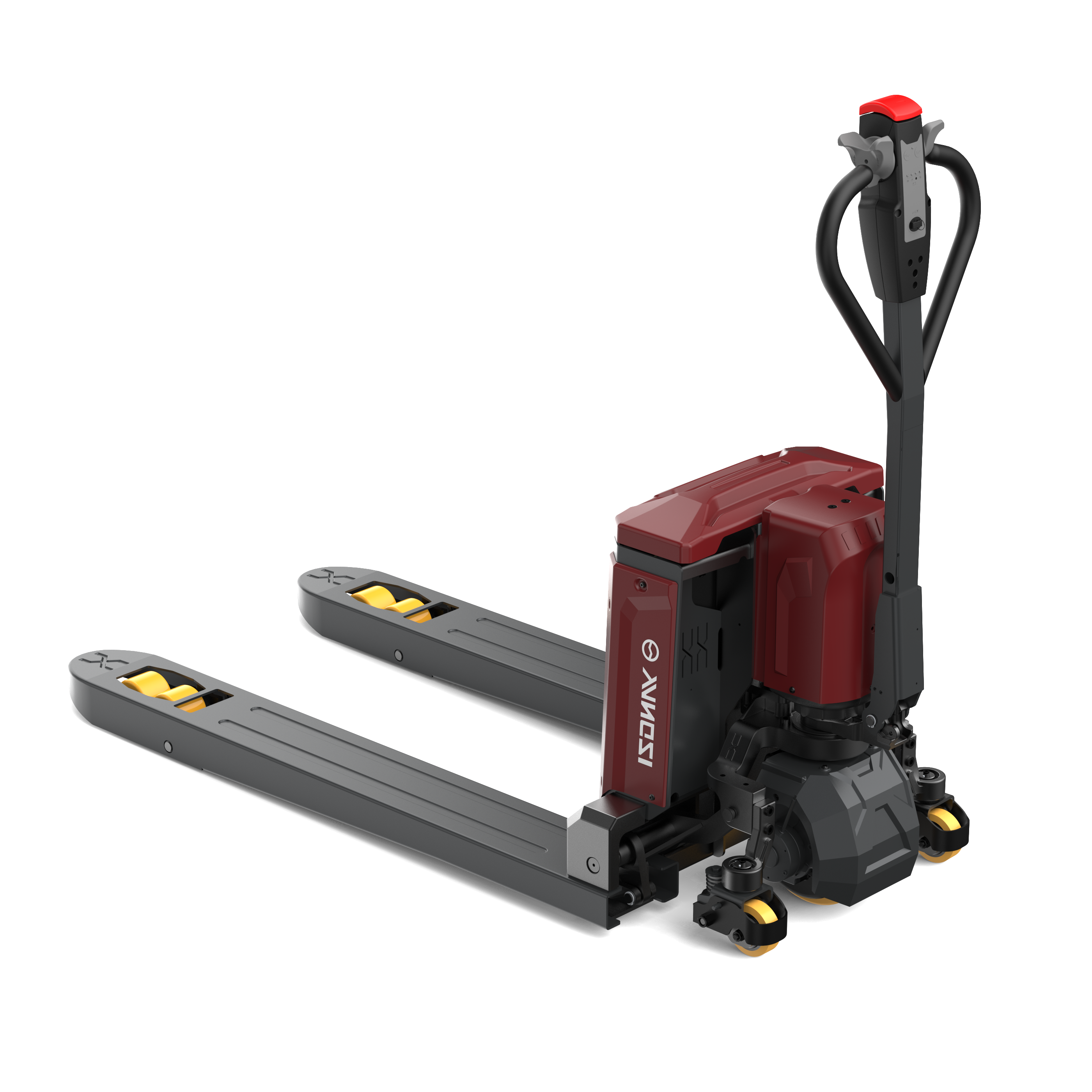

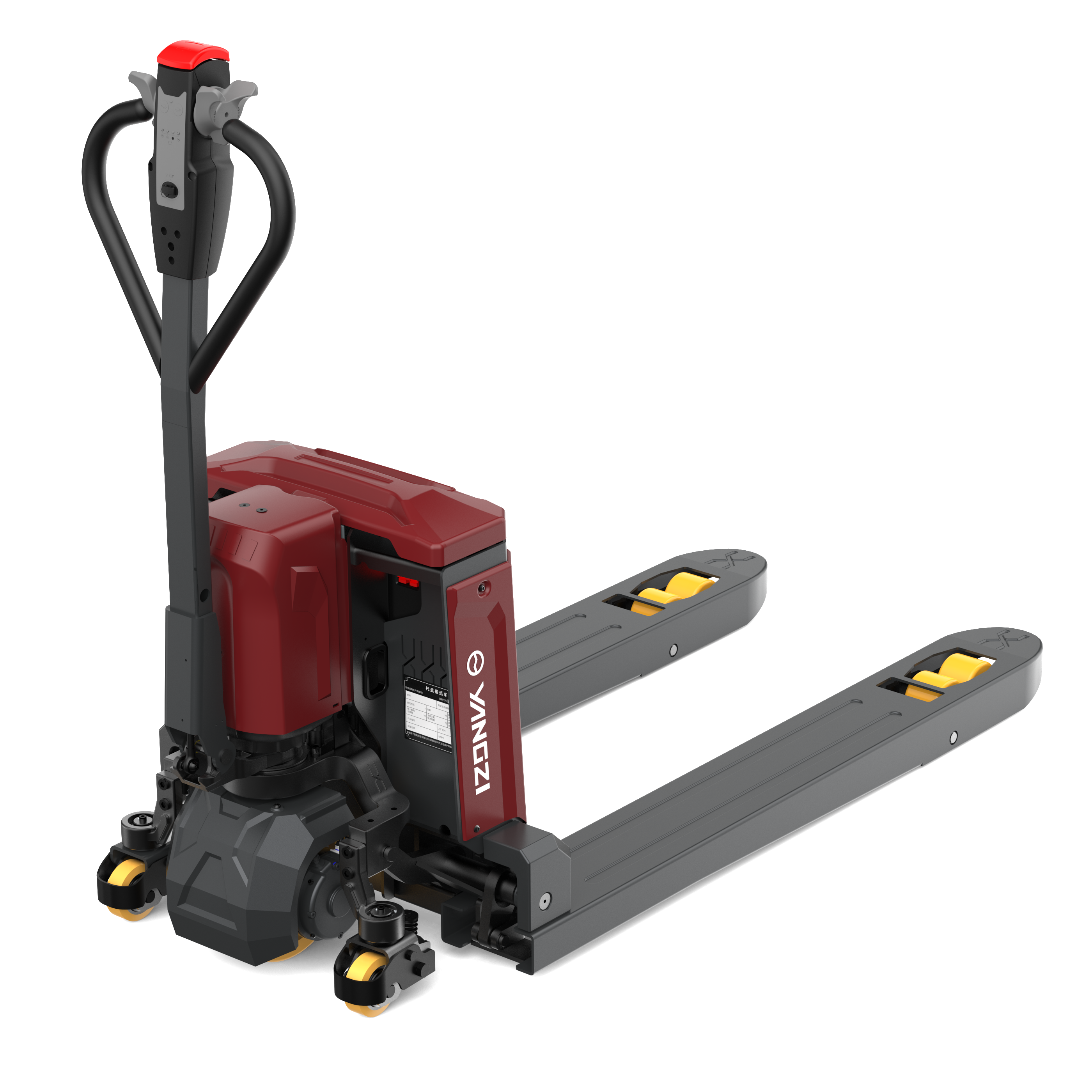

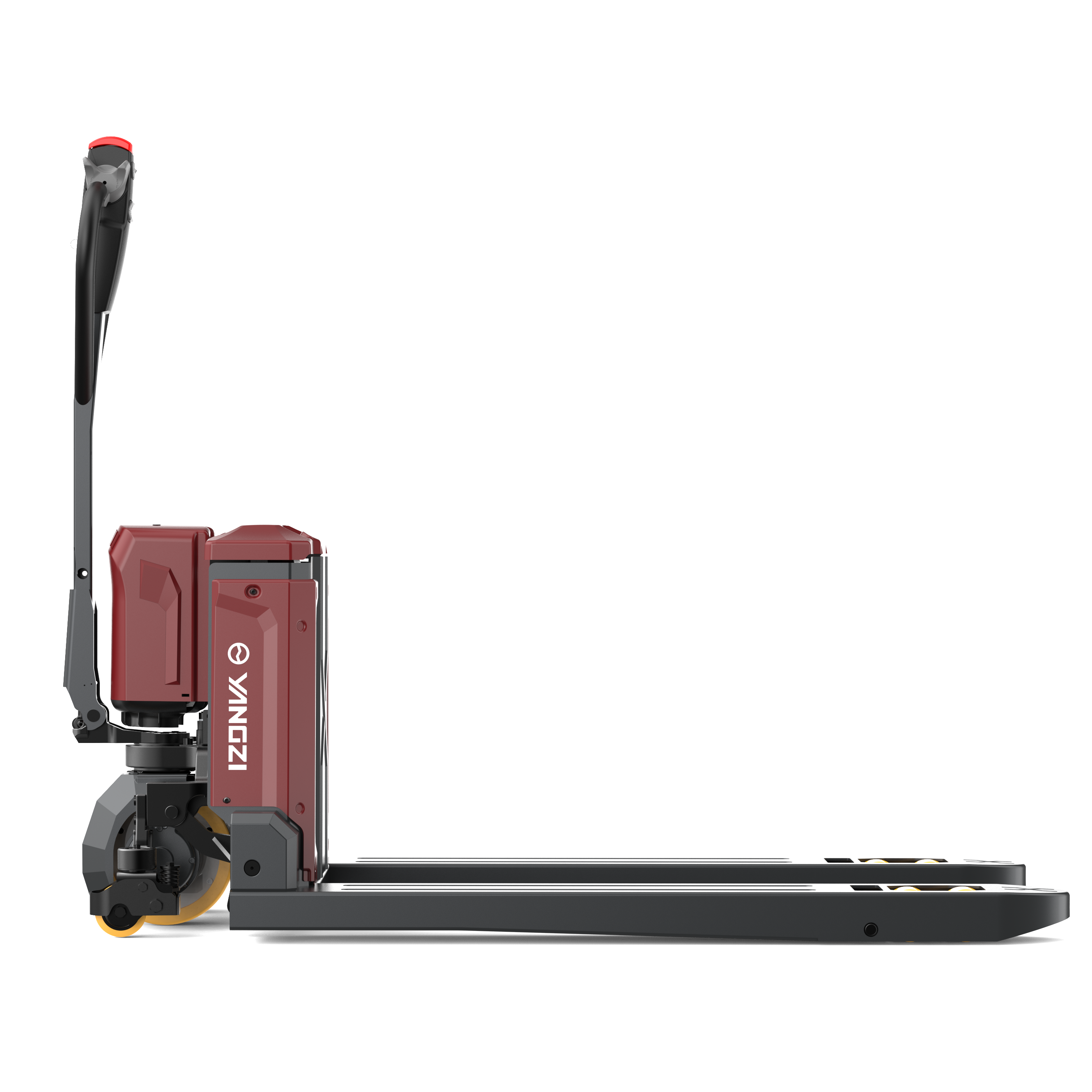

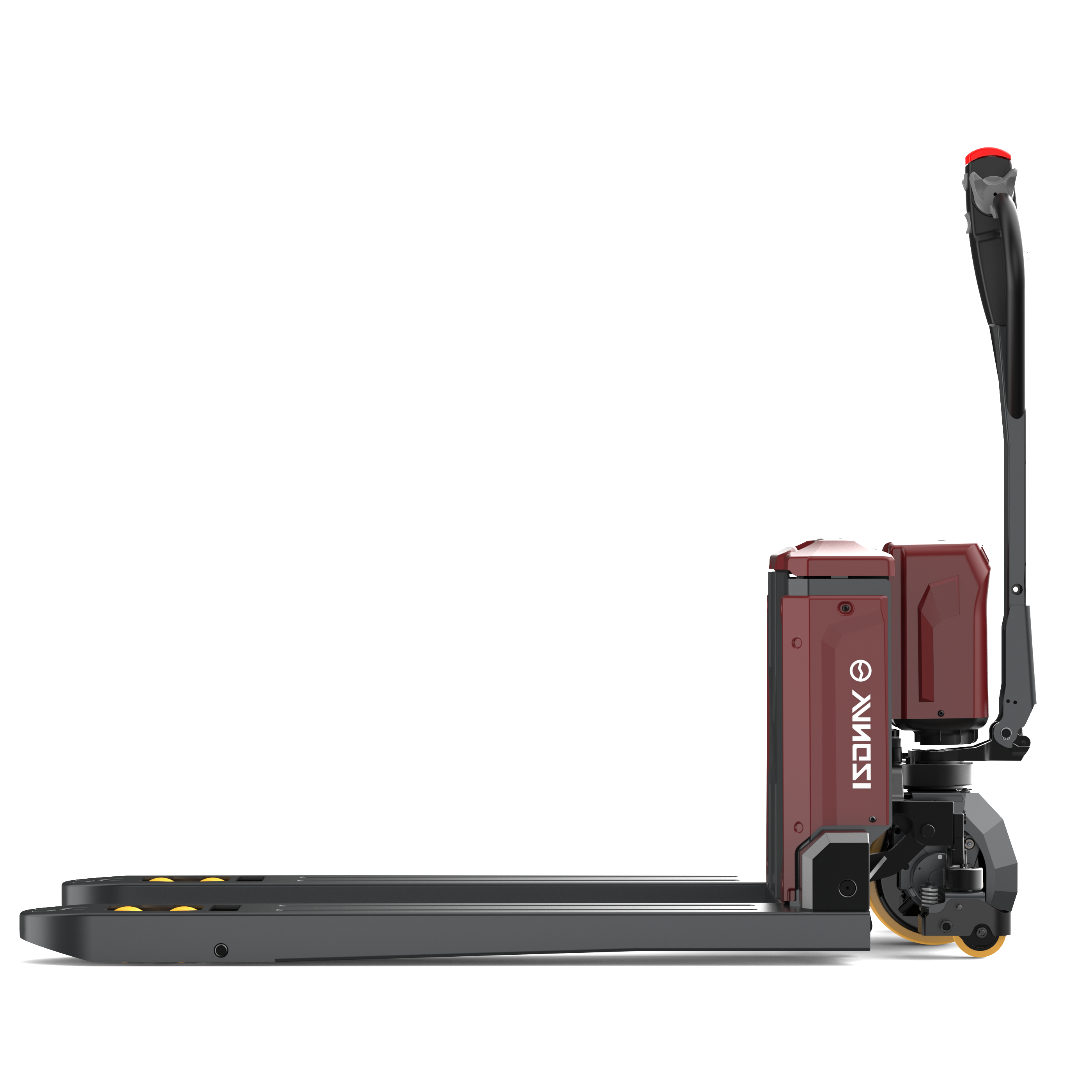

1500kg Electric Pallet Truck for Warehouse Material Handling
Key specifications
| Specification | Unit | HPWS1501 |
|---|---|---|
| Power Source | — | Electric |
| Operation Type | — | Walk-behind |
| Rated Load | Q (kg) | 1500 |
| Load Center Distance | c (mm) | 600 |
| Service Weight | kg | 130 |
| Lifting Height | h3 (mm) | 195 |
| Lowered Fork Height | h13 (mm) | 82 |
| Overall Length | l1 (mm) | 1560 |
| Overall Width | b1 (mm) | 685 |
| Fork Dimensions (Thickness × Width × Length) | T/W/L (mm) | 60/160/1150 |
| Overall Fork Width | b5 (mm) | 685 |
| Aisle Width for 800 × 1200 Pallet (200 mm Safety Clearance) | Ast (mm) | 2005 |
| Turning Radius | Wa (mm) | 1360 |
| Travel Speed, Loaded / Unloaded | km/h | 4.0 / 4.4 |
| Lifting Speed, Loaded / Unloaded | m/s | 0.016 / 0.021 |
| Lowering Speed, Loaded / Unloaded | m/s | 0.05 / 0.026 |
| Max. Gradeability, Loaded / Unloaded | % | 6 / 20 |
| Battery Voltage & Rated Capacity | V / Ah | 24 / 20 |

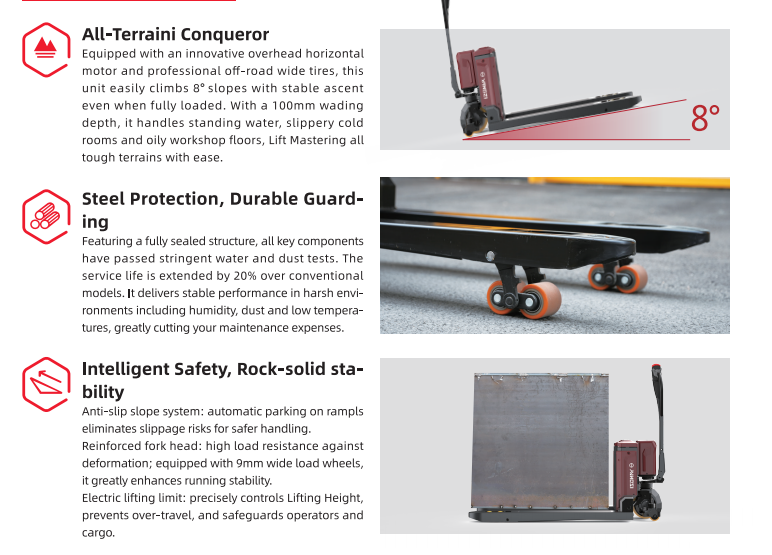

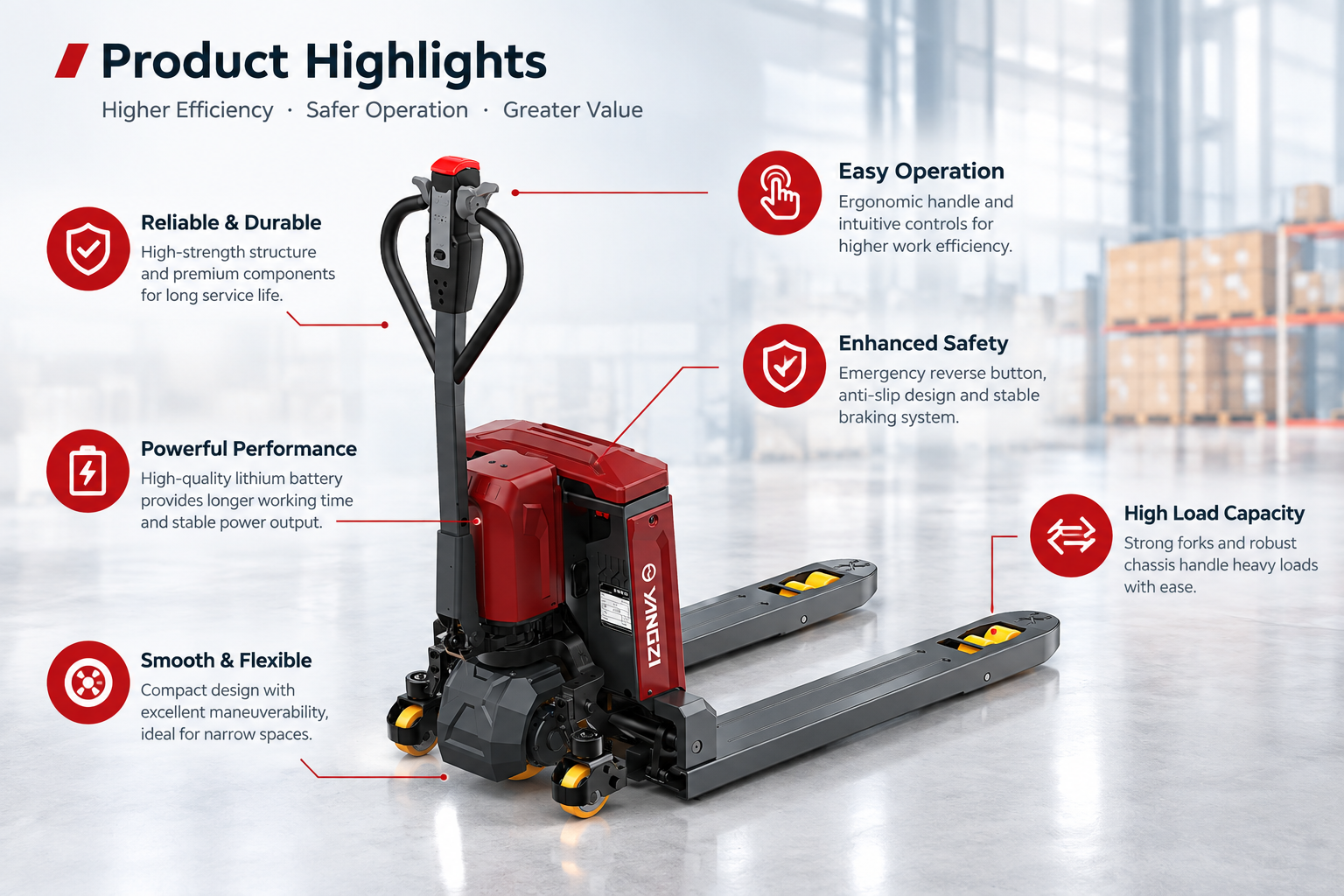

Product Highlights
✅1.5 Ton Load Capacity
HPWS1501 is designed for daily pallet handling with a rated load capacity of up to 1500 kg.
✅Electric-Powered Handling
Electric travel and lifting reduce manual pushing and pulling, helping operators handle pallets more efficiently.
✅Compact Design
The compact pallet truck is suitable for warehouse aisles, loading areas, production workshops and other space-limited environments.
✅Easy Operation
The ergonomic tiller provides intuitive controls for travelling, lifting and lowering, making the truck easy to operate.
✅Built for Daily Warehouse Operations
The reinforced frame and pallet forks are designed for frequent material handling applications.
✅Suitable for Multiple Applications
Ideal for warehouses, logistics centers, factories, distribution centers, supermarkets and loading/unloading operations.

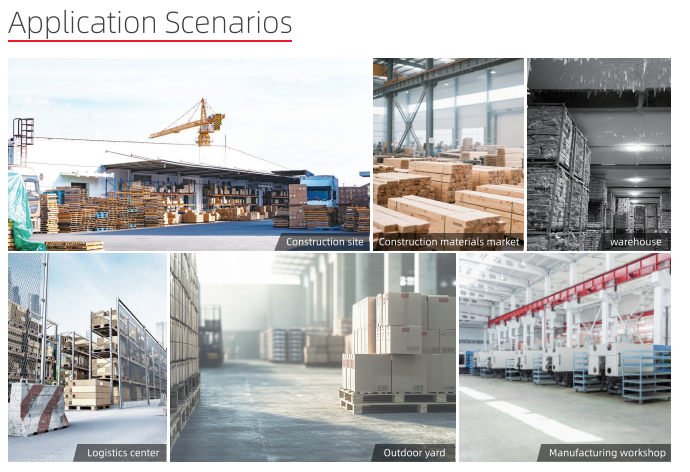

Applications
Warehouses
Efficient pallet transportation for daily warehouse operations.
Logistics & Distribution Centers
Suitable for moving palletized goods between storage, staging and loading areas.
Manufacturing Plants
Ideal for internal material transportation between production and storage areas.
Retail & Supermarkets
Suitable for pallet movement in backrooms, distribution areas and loading zones.
Loading & Unloading
Designed for short-distance pallet handling around loading docks and delivery areas.

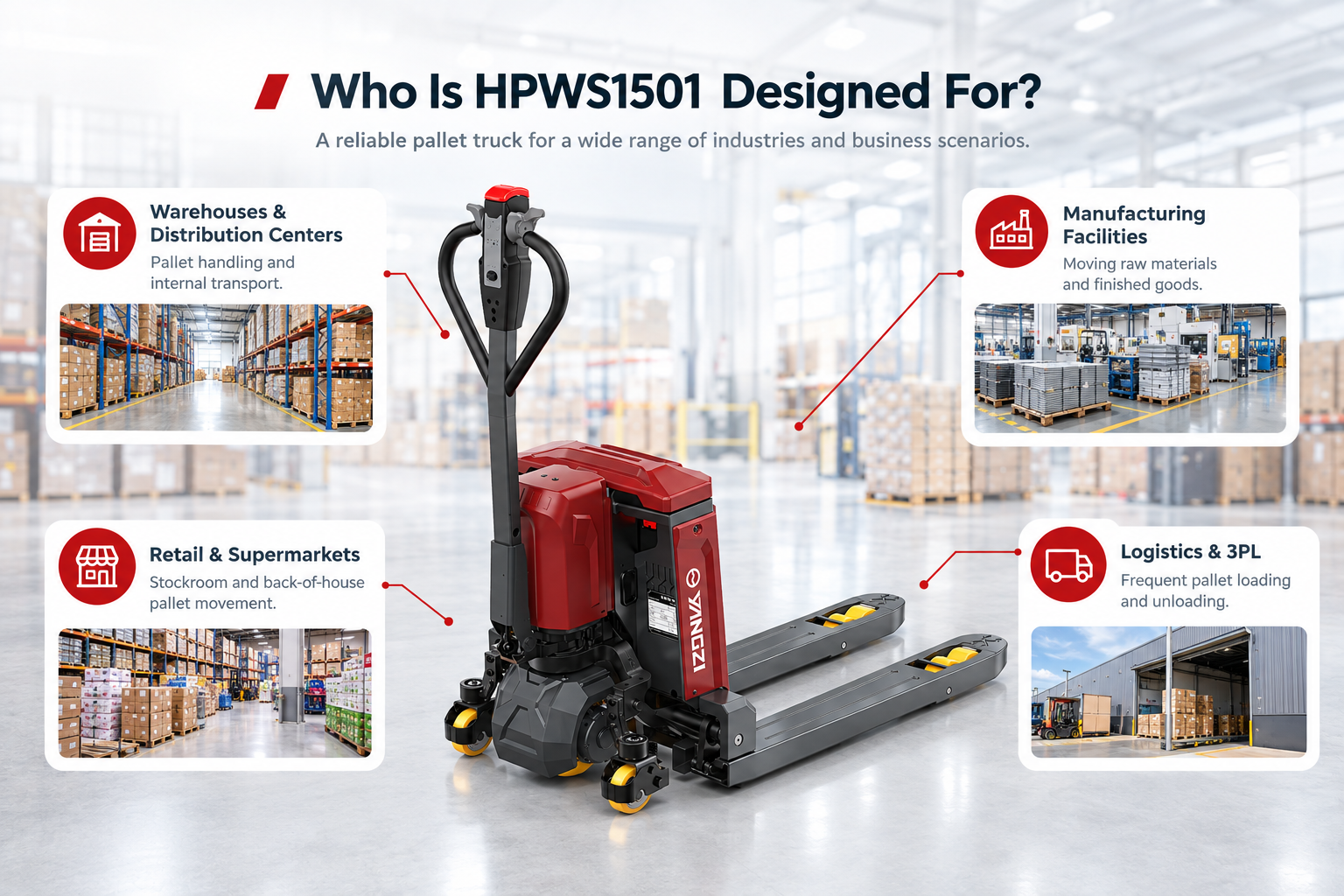

HPWS1501 is suitable for:
Forklift distributors
Material handling equipment dealers
Warehouse equipment suppliers
Logistics companies
Manufacturing companies
Warehouse operators
Supermarket & retail distribution centers
Industrial equipment importers
Direct communication with the manufacturer for product configuration, quotation and technical support.
Product branding, color, packaging and configuration can be discussed according to market requirements.
Professional support for international distributors, importers and industrial equipment buyers.
Yangzi's forklift range includes pallet trucks, stacker trucks, counterbalance forklifts and intelligent handling equipment.
Provide product documentation, spare parts support and technical assistance for international customers.
The Yangzi HPWS1501 electric pallet truck has a rated load capacity of 1500 kg (1.5 tons).
Yes. HPWS1501 is an electric-powered pallet truck designed for pallet transportation and warehouse material handling.
It can be used in warehouses, logistics centers, factories, distribution centers, supermarkets and loading areas.
Yes. Yangzi supports international orders and can discuss product configuration, packaging and shipping requirements with distributors and importers.
OEM and product customization options can be discussed according to order requirements.
Contact Yangzi by WhatsApp or email with your required quantity, destination country and configuration. Our sales team will provide a quotation.
