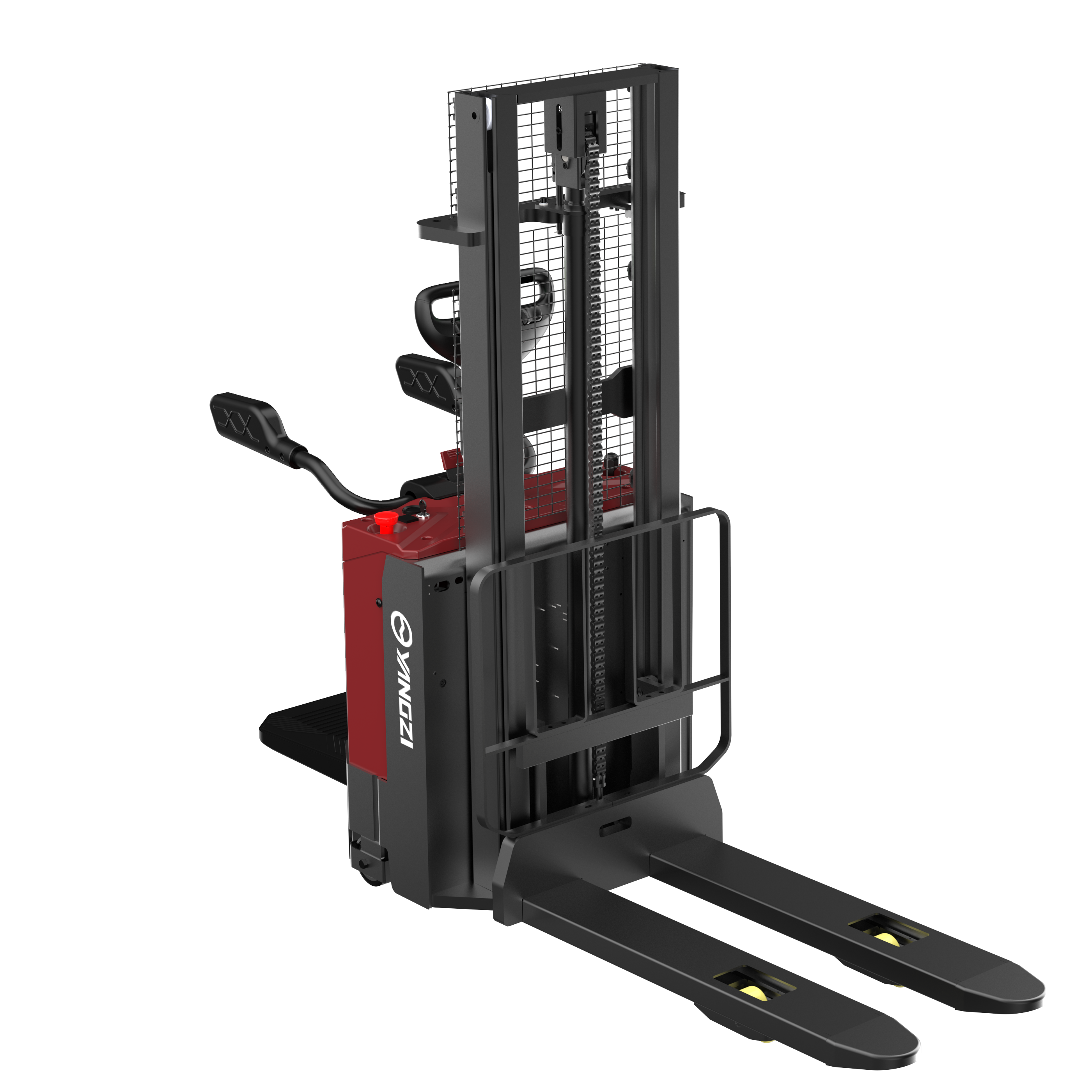

Compact electric pallet stacker designed for efficient pallet handling, stacking and warehouse operations.

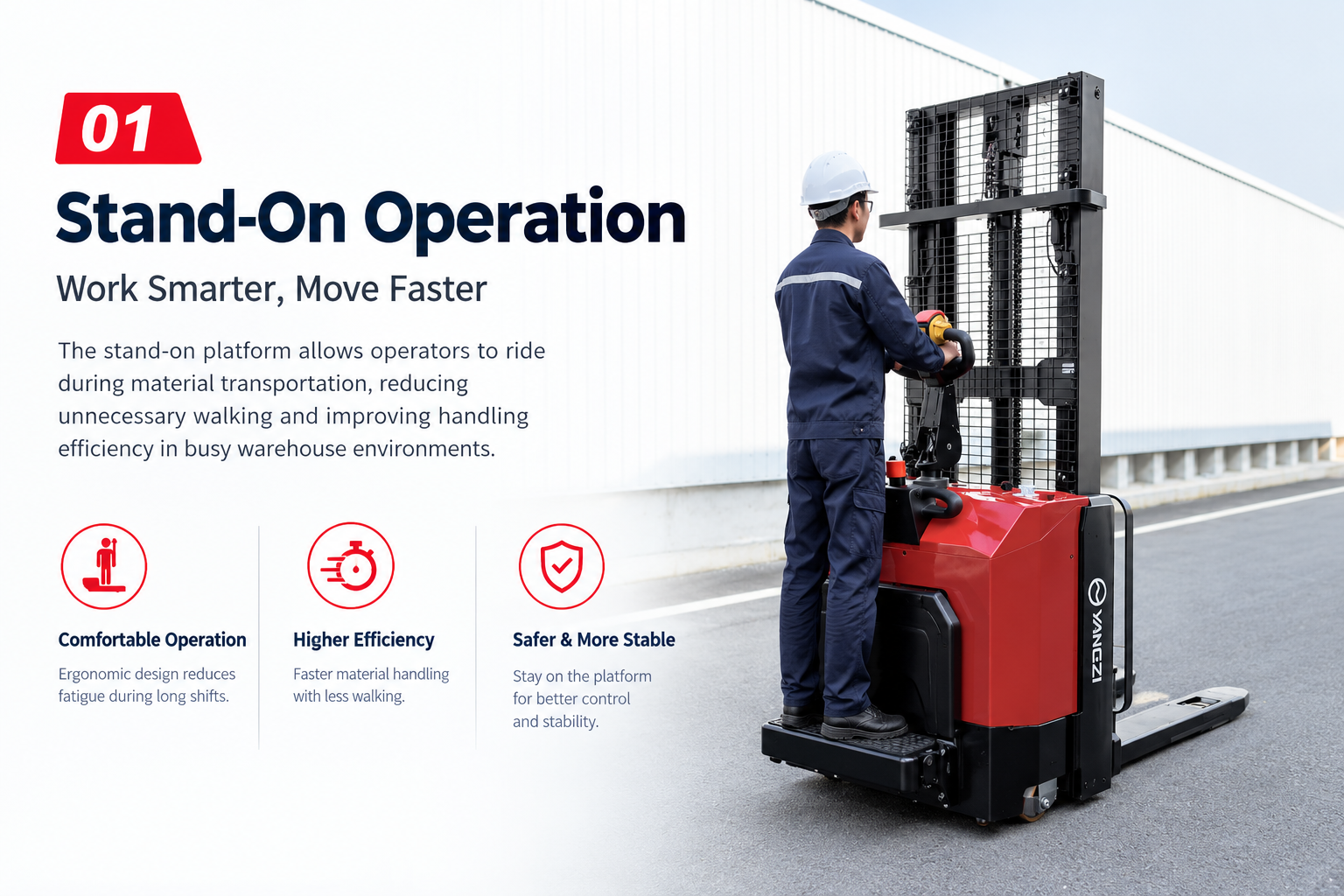

Stand-On Operation for Faster Warehouse Handling
The stand-on platform allows operators to ride during material transportation, reducing unnecessary walking and improving handling efficiency in busy warehouse environments.

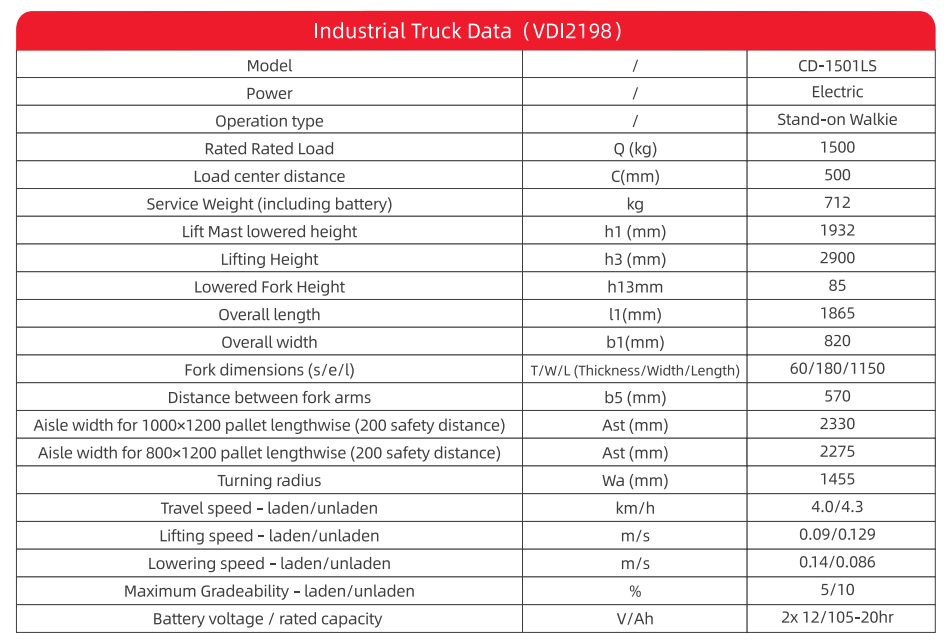

| Item | Symbol / Unit | Specification |
|---|---|---|
| Model | — | 1501 |
| Power | — | Electric |
| Operation Type | — | Stand-On Walkie |
| Rated Load | Q (kg) | 1500 |
| Load Center Distance | C (mm) | 500 |
| Service Weight (Including Battery) | kg | 712 |
| Lift Mast Lowered Height | h1 (mm) | 1932 |
| Lifting Height | h3 (mm) | 2900 |
| Lowered Fork Height | h13 (mm) | 85 |
| Overall Length | l1 (mm) | 1865 |
| Overall Width | b1 (mm) | 820 |
| Fork Dimensions (Thickness × Width × Length) | T/W/L (mm) | 60 × 180 × 1150 |
| Distance Between Fork Arms | b5 (mm) | 570 |
| Aisle Width for 1000 × 1200 Pallet Lengthwise (200 mm Safety Distance) | Ast (mm) | 2330 |
| Aisle Width for 800 × 1200 Pallet Lengthwise (200 mm Safety Distance) | Ast (mm) | 2275 |
| Turning Radius | Wa (mm) | 1455 |
| Travel Speed – Laden / Unladen | km/h | 4.0 / 4.3 |
| Lifting Speed – Laden / Unladen | m/s | 0.09 / 0.129 |
| Lowering Speed – Laden / Unladen | m/s | 0.14 / 0.086 |
| Maximum Gradeability – Laden / Unladen | % | 5 / 10 |
| Battery Voltage / Rated Capacity | V/Ah | 2 × 12V / 105Ah – 20hr |

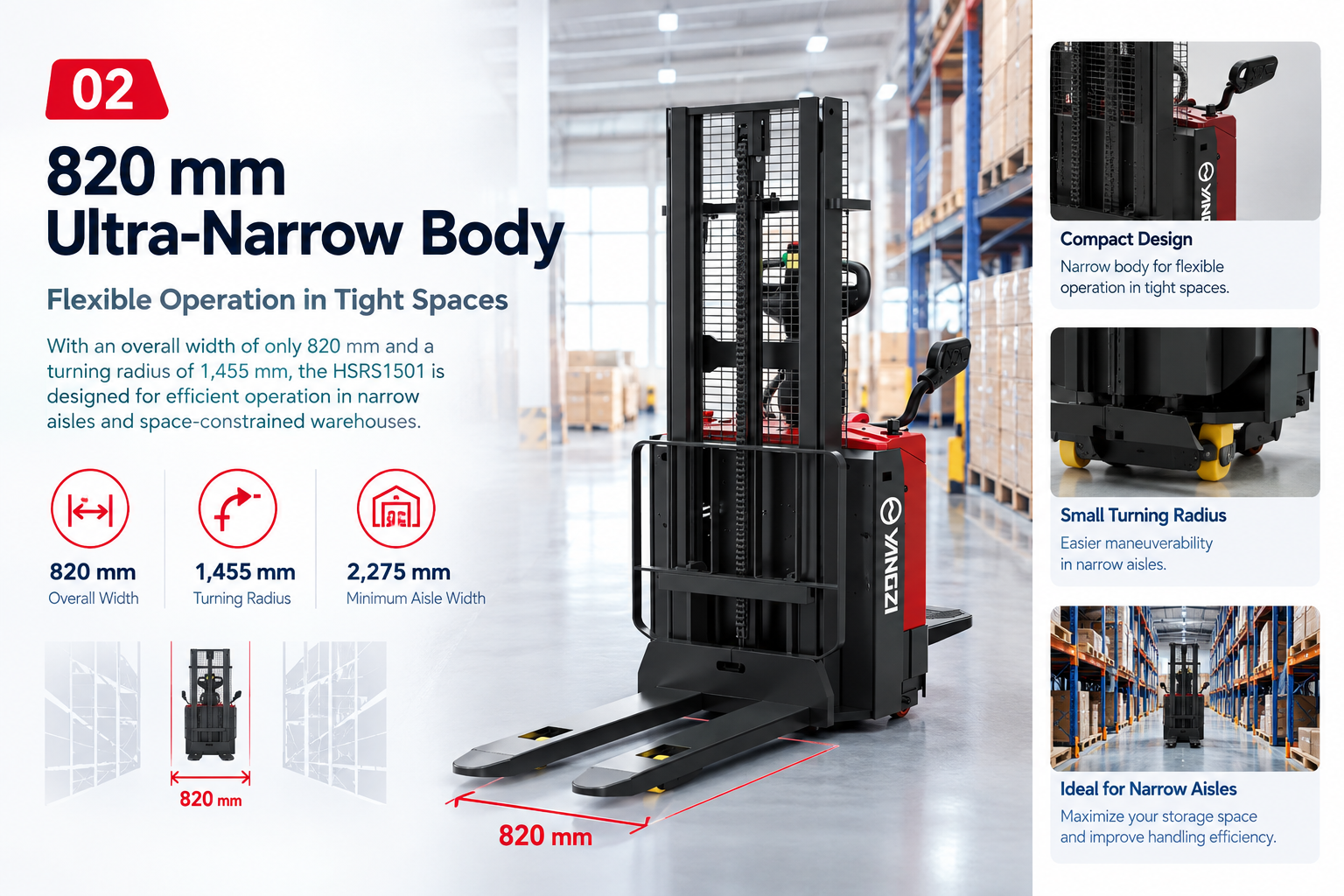

Compact Design for Space-Limited Warehouses
With an overall width of only 820 mm and a turning radius of 1,455 mm, the HSRS1501 is designed for flexible operation in compact warehouse environments.

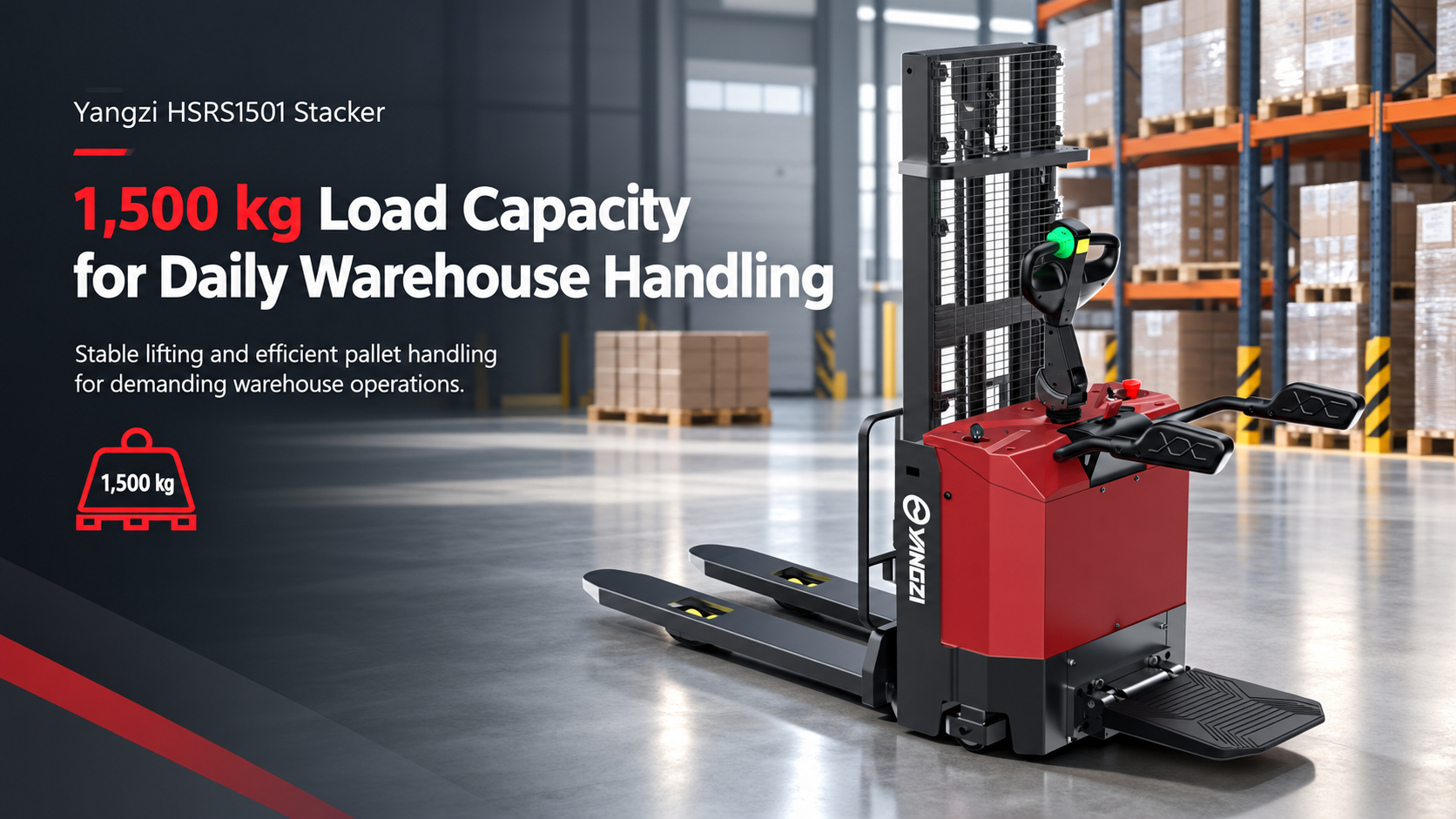

1,500 kg Load Capacity for Daily Warehouse Handling
With a rated load capacity of 1,500 kg, the HSRS1501 is suitable for pallet transportation, stacking and material handling across warehouses, workshops and distribution centers.
24V Electric Power System
Powered by a 24V battery system, the HSRS1501 provides stable electric lifting and driving performance for daily warehouse operations.

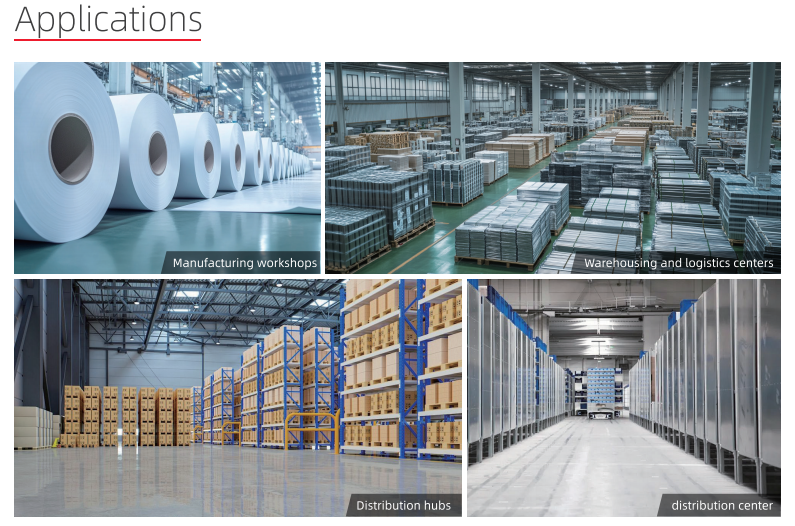

Built for Demanding Warehouse Applications
✅Manufacturing
Material handling and pallet movement around production facilities.
✅Warehousing
Efficient pallet stacking and short-distance transportation.
✅Distribution Centers
Flexible handling for high-frequency pallet operations.
✅Logistics
Compact dimensions help improve maneuverability in busy warehouse environments.
